FAKRA - RF COAXIAL Cables

Standard and Custom Designs

AVRGT FAKRA (Coax) connectors:  The automotive industry, RF-COAX Applications. Vehicles applications include SDARS, Cellular, GPS Navigation, Telematics, key-less entry and satellite radio.    Typical RF Coaxial cable sizes used with AVRGT FAKRA connectors include:  RG174, RG179, RG59, RG6, RTK031.  There are 14 combinations (clocking types by alpha-color code) (A, B, C, D, E, F, G, H, I, K, L, M, N, Z).

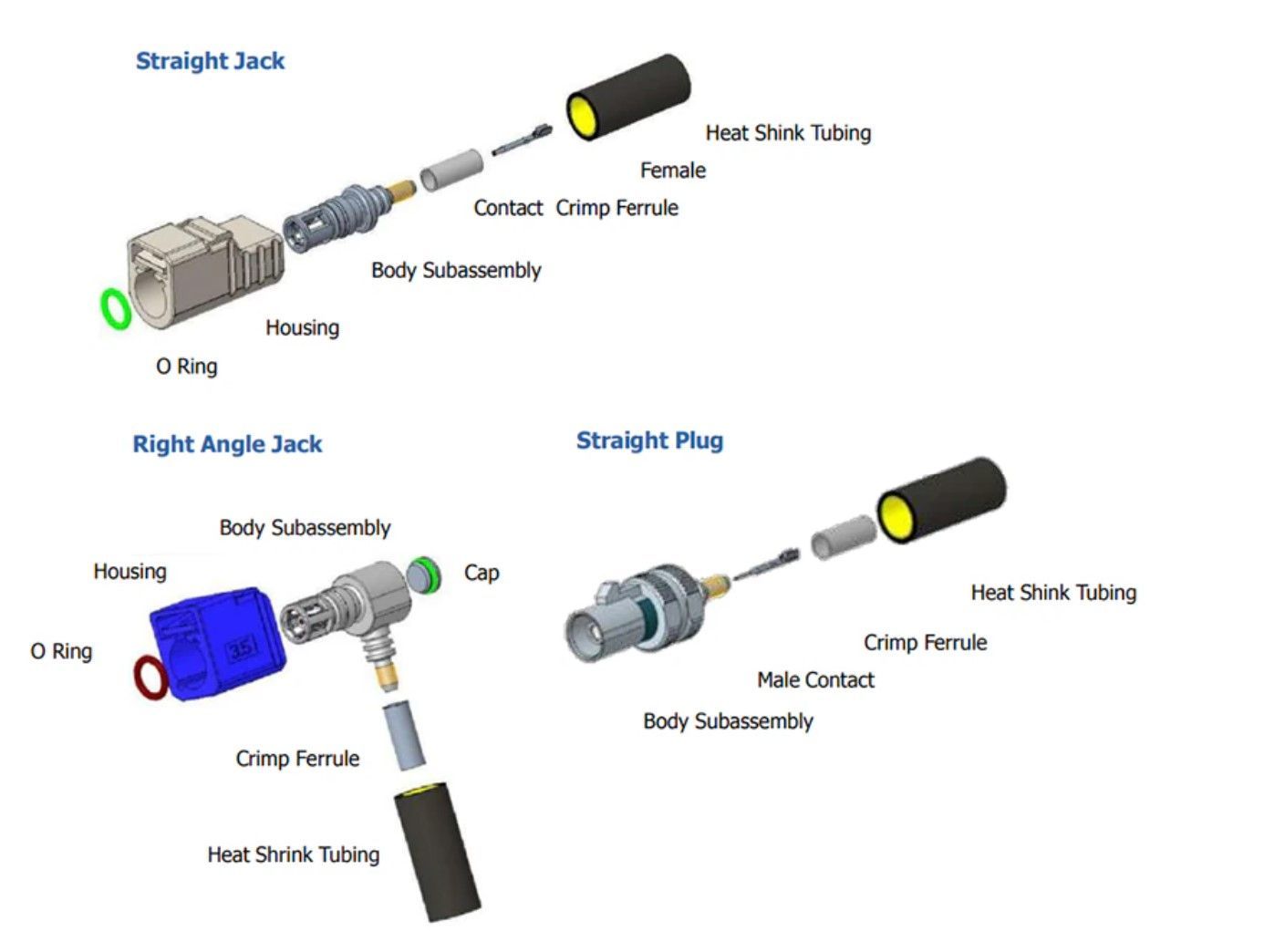

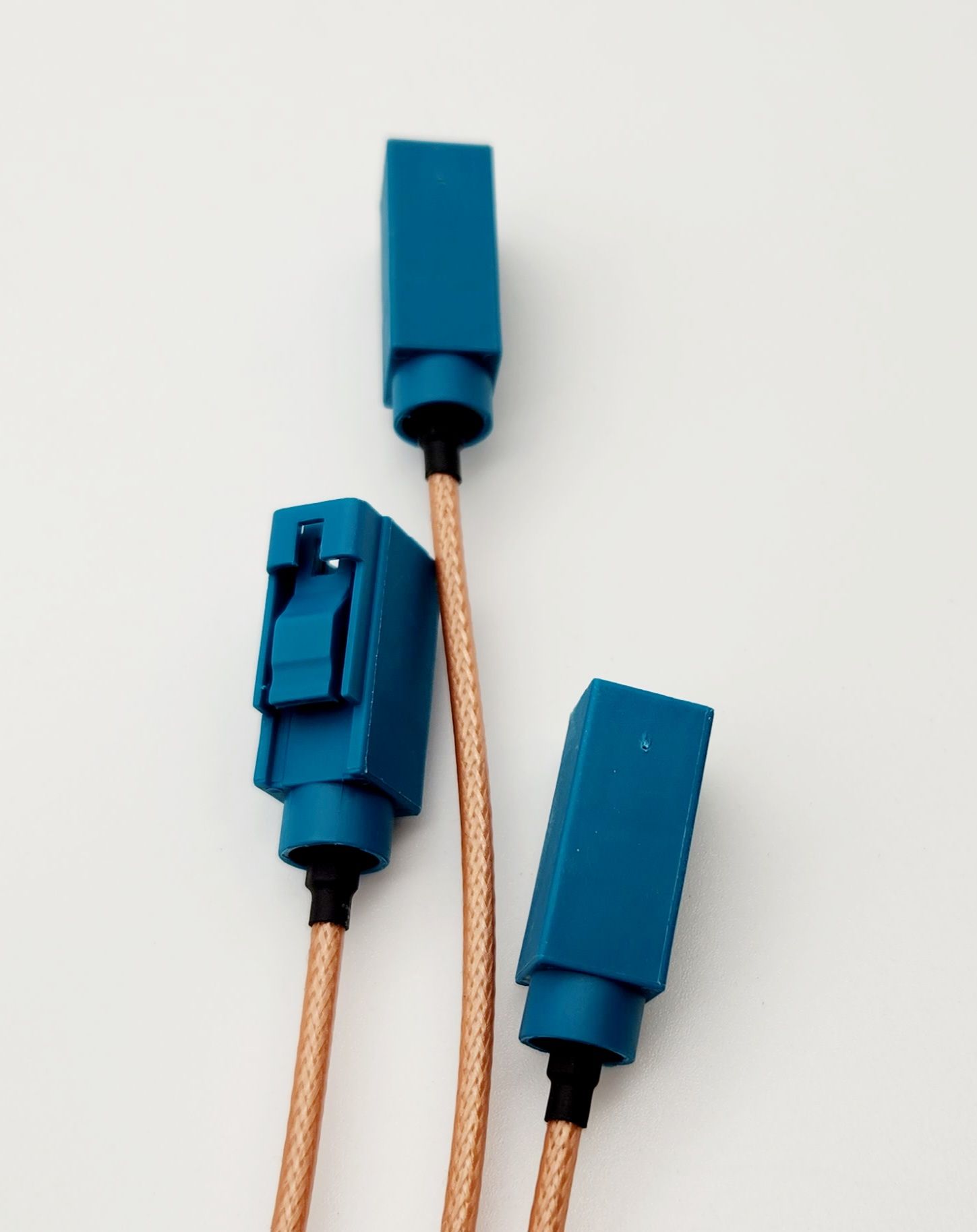

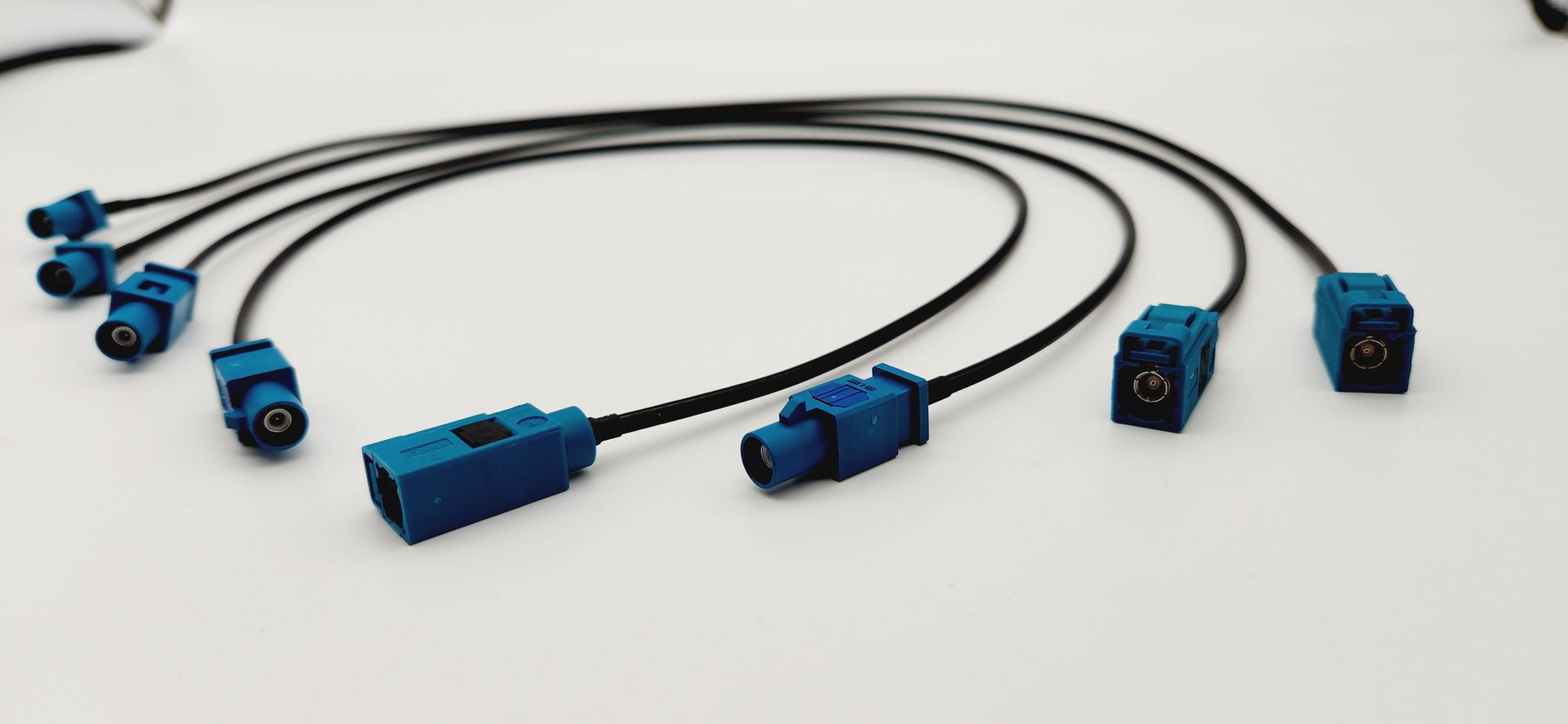

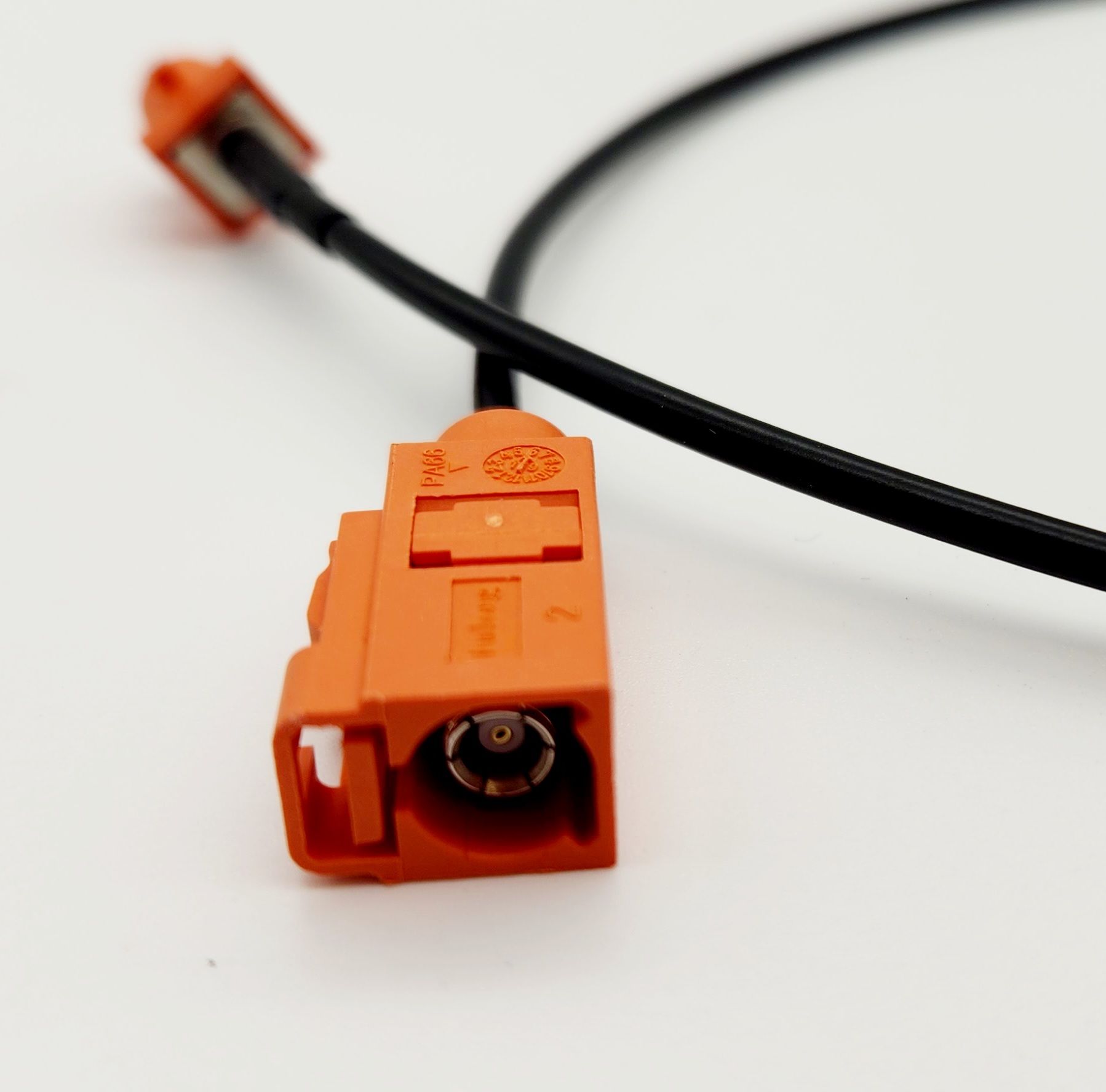

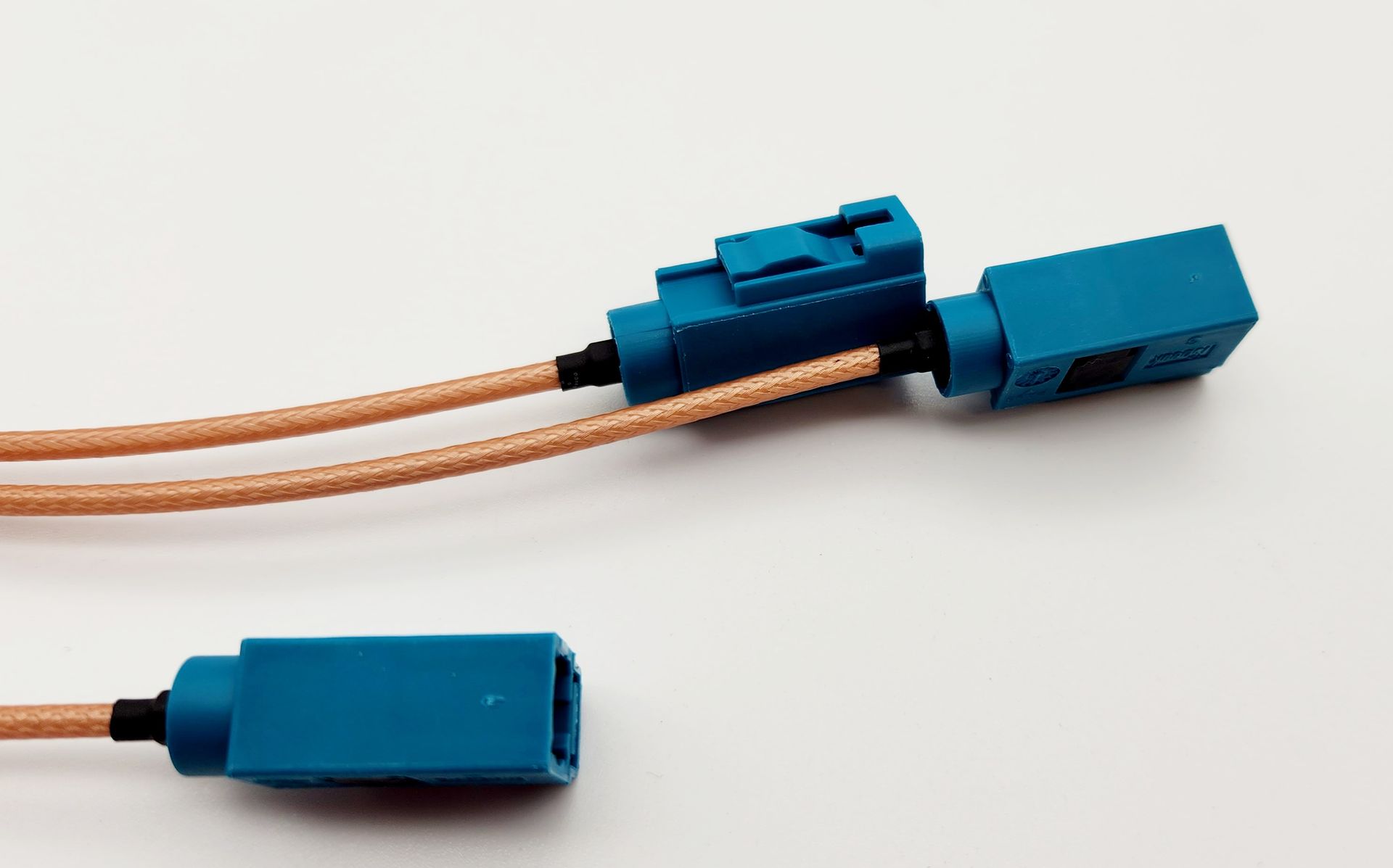

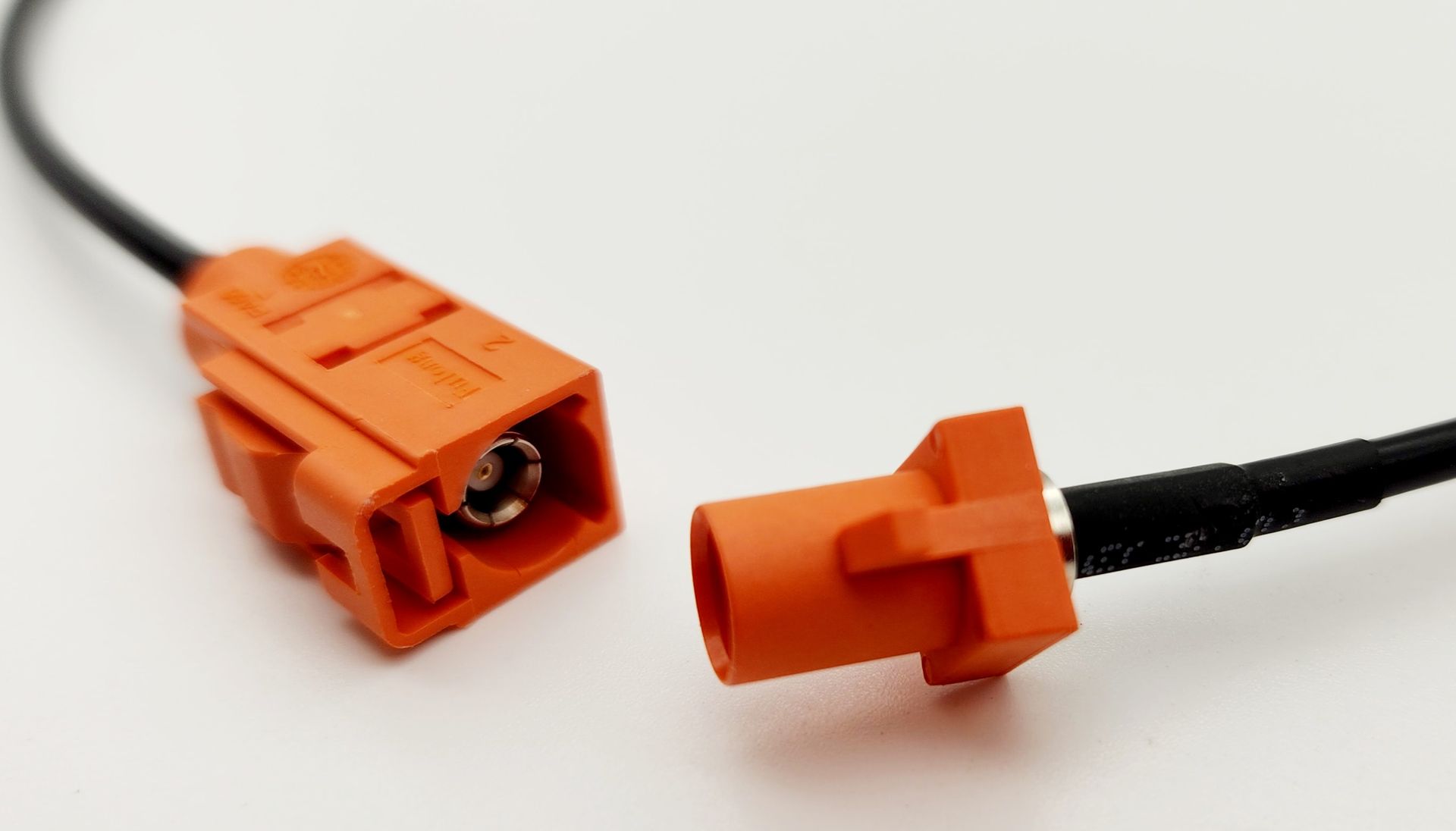

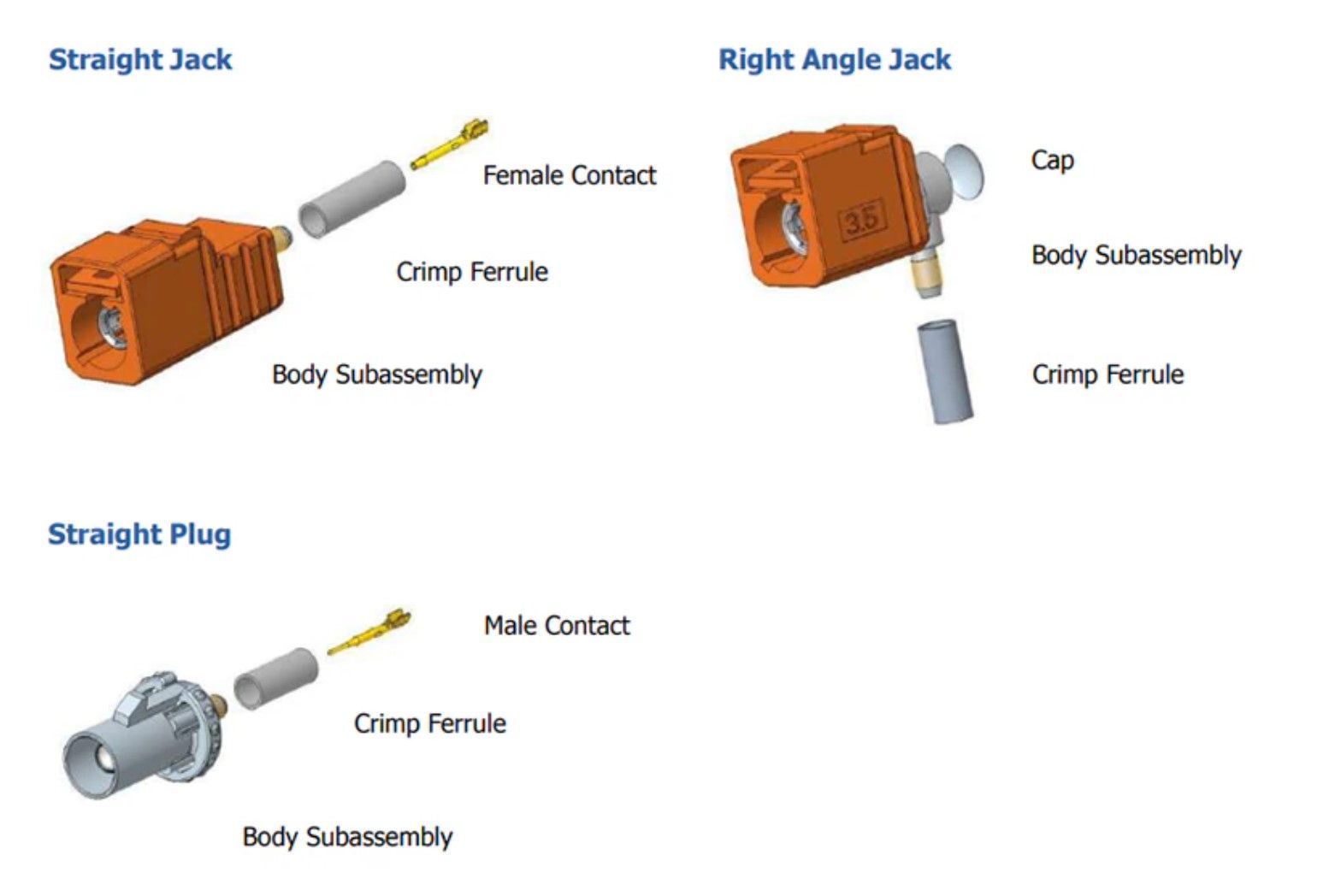

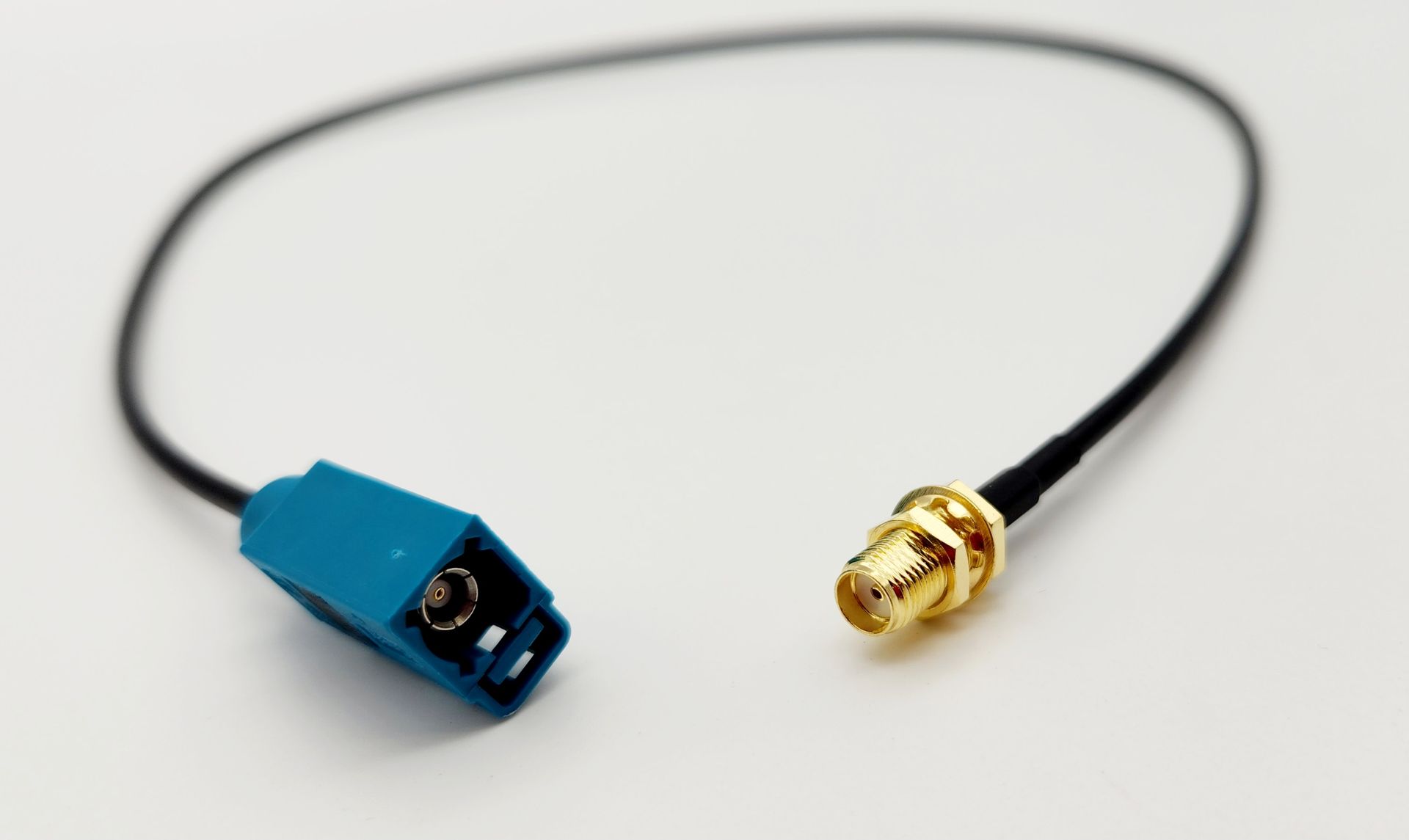

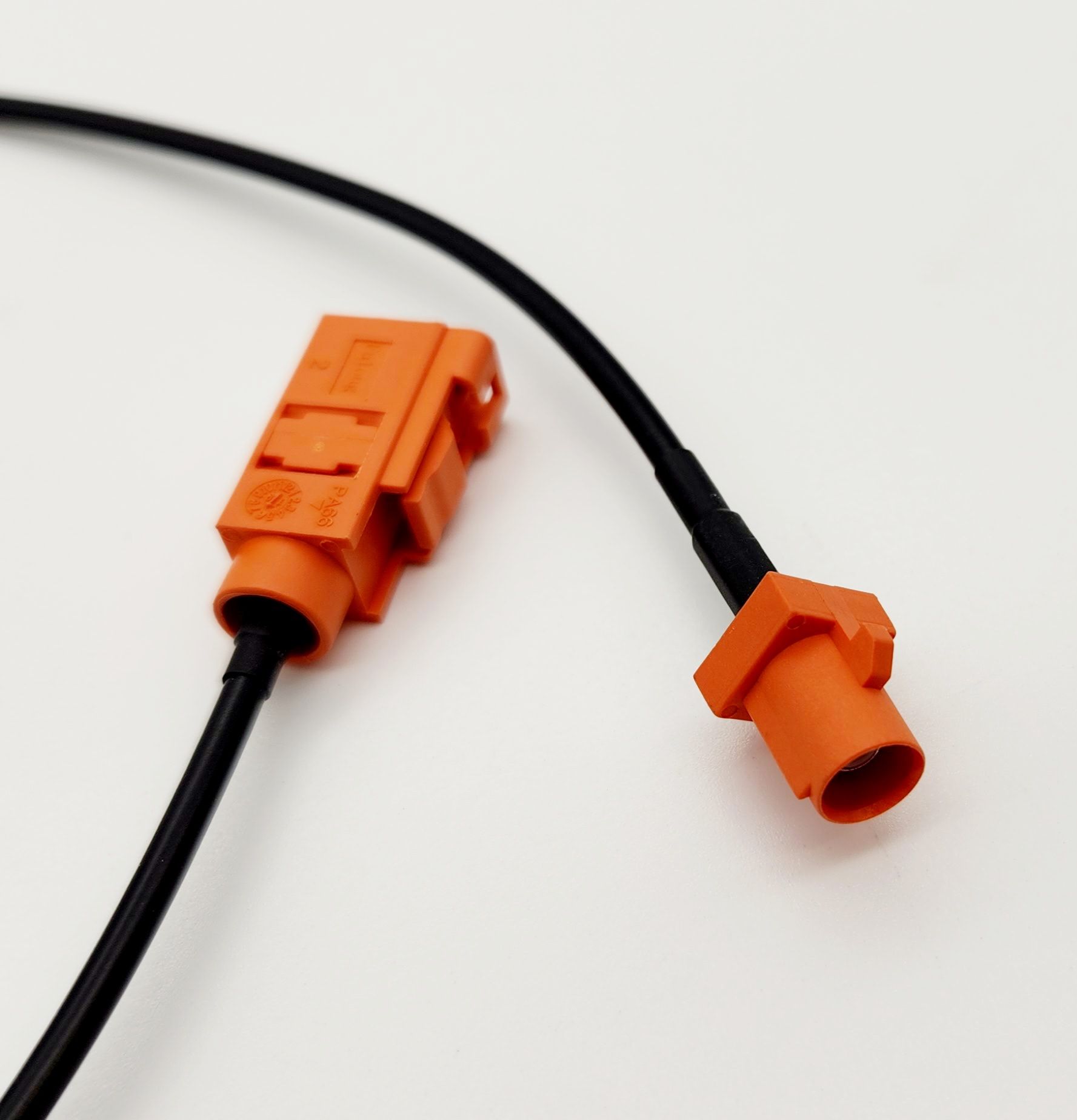

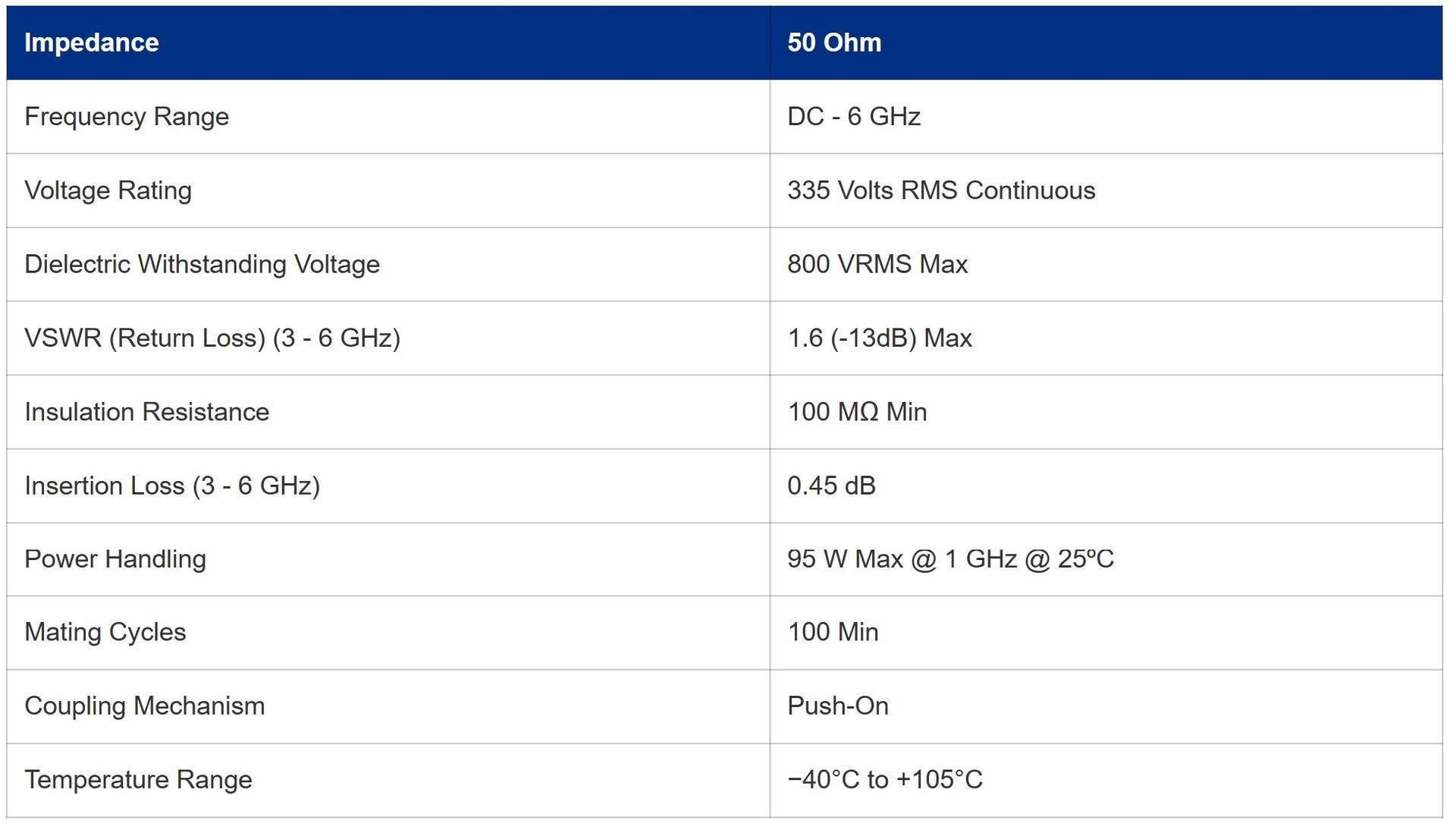

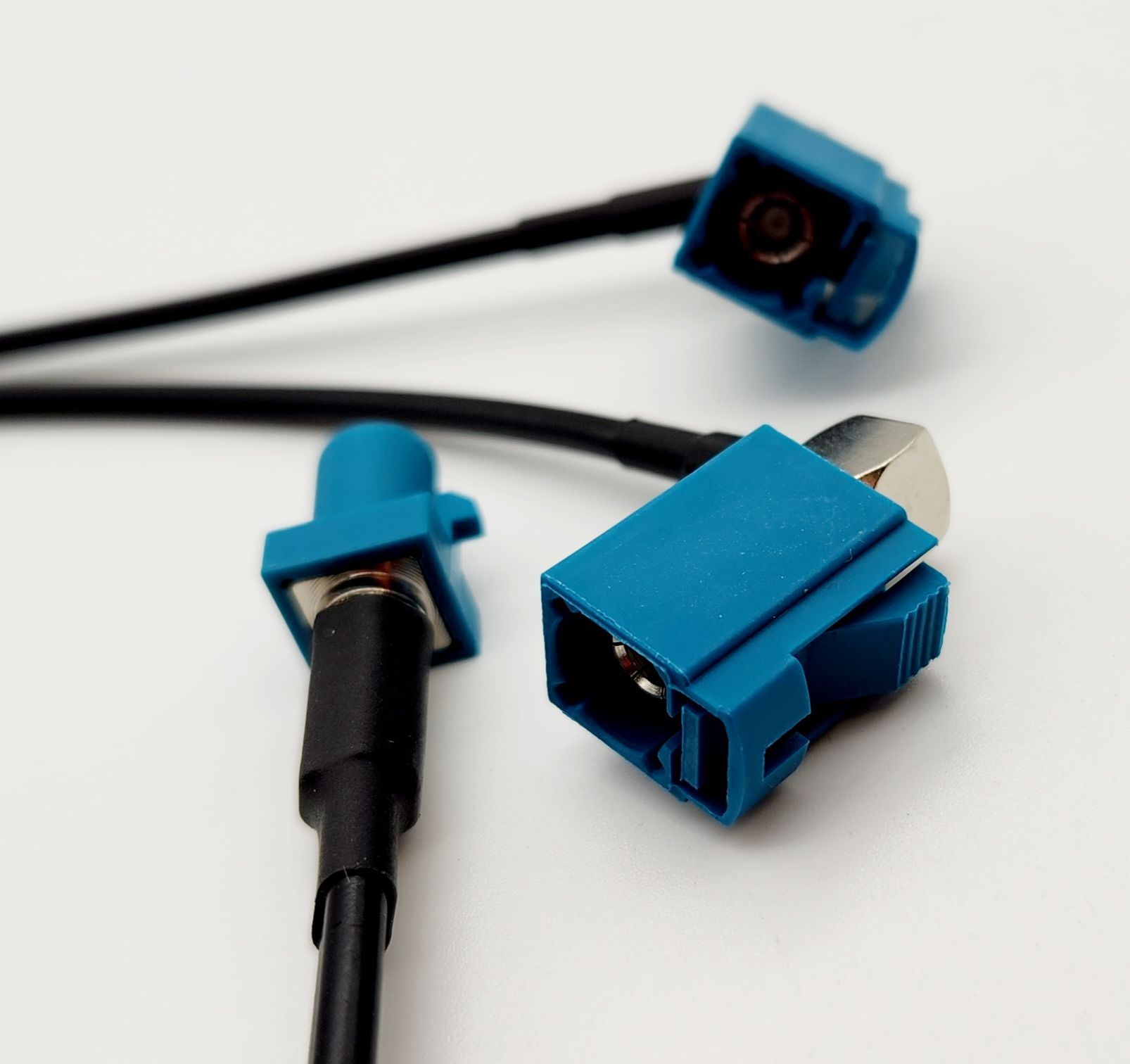

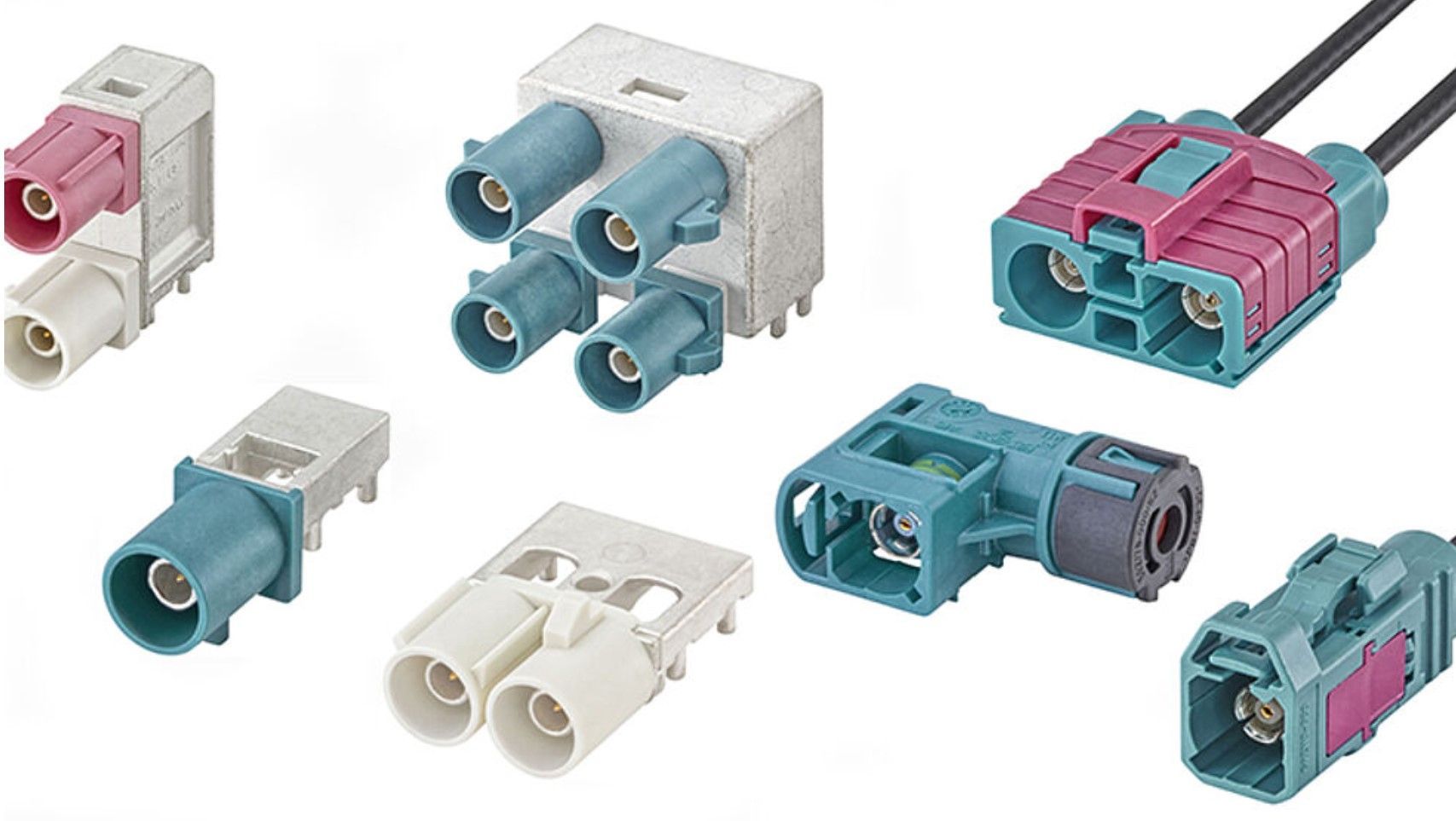

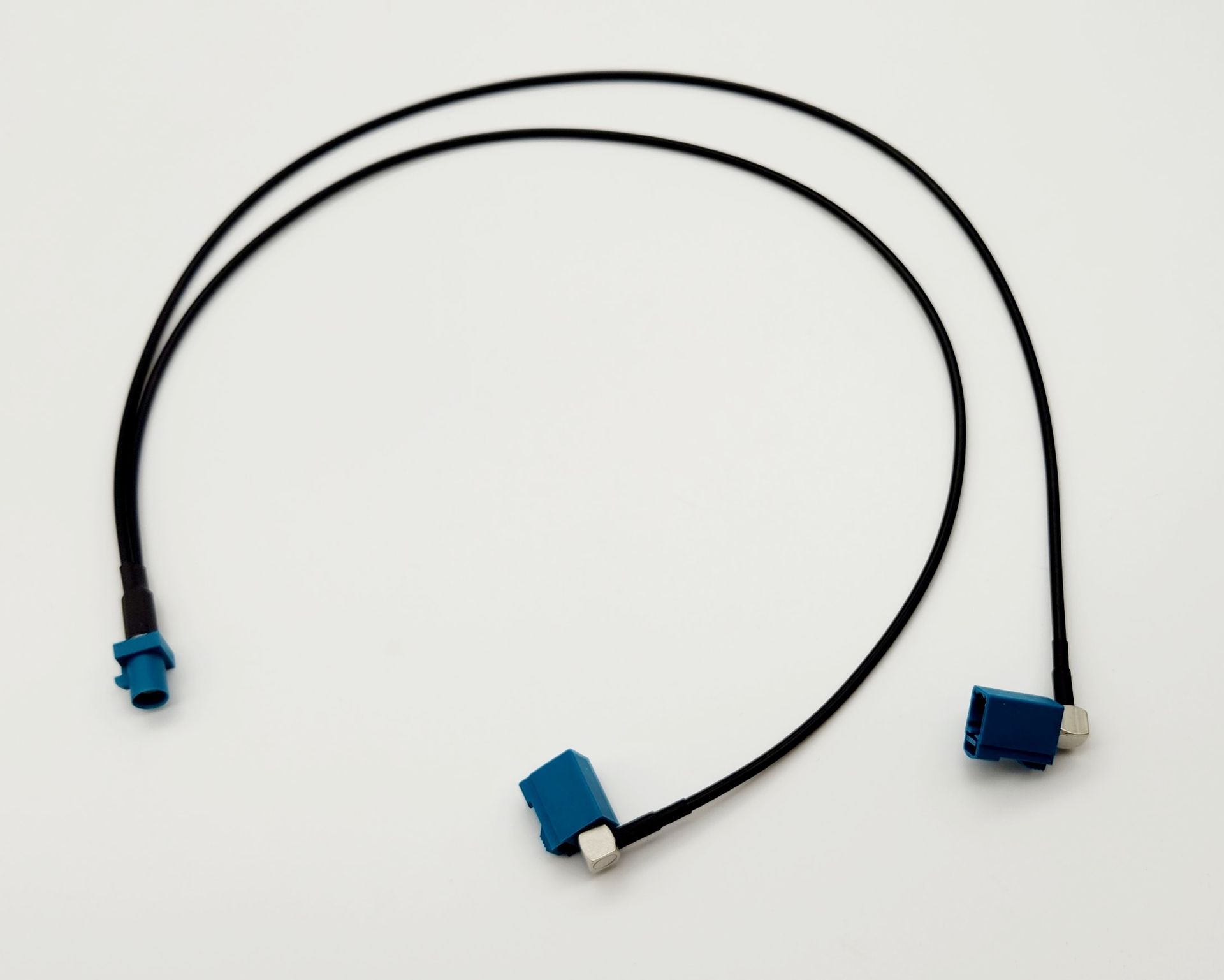

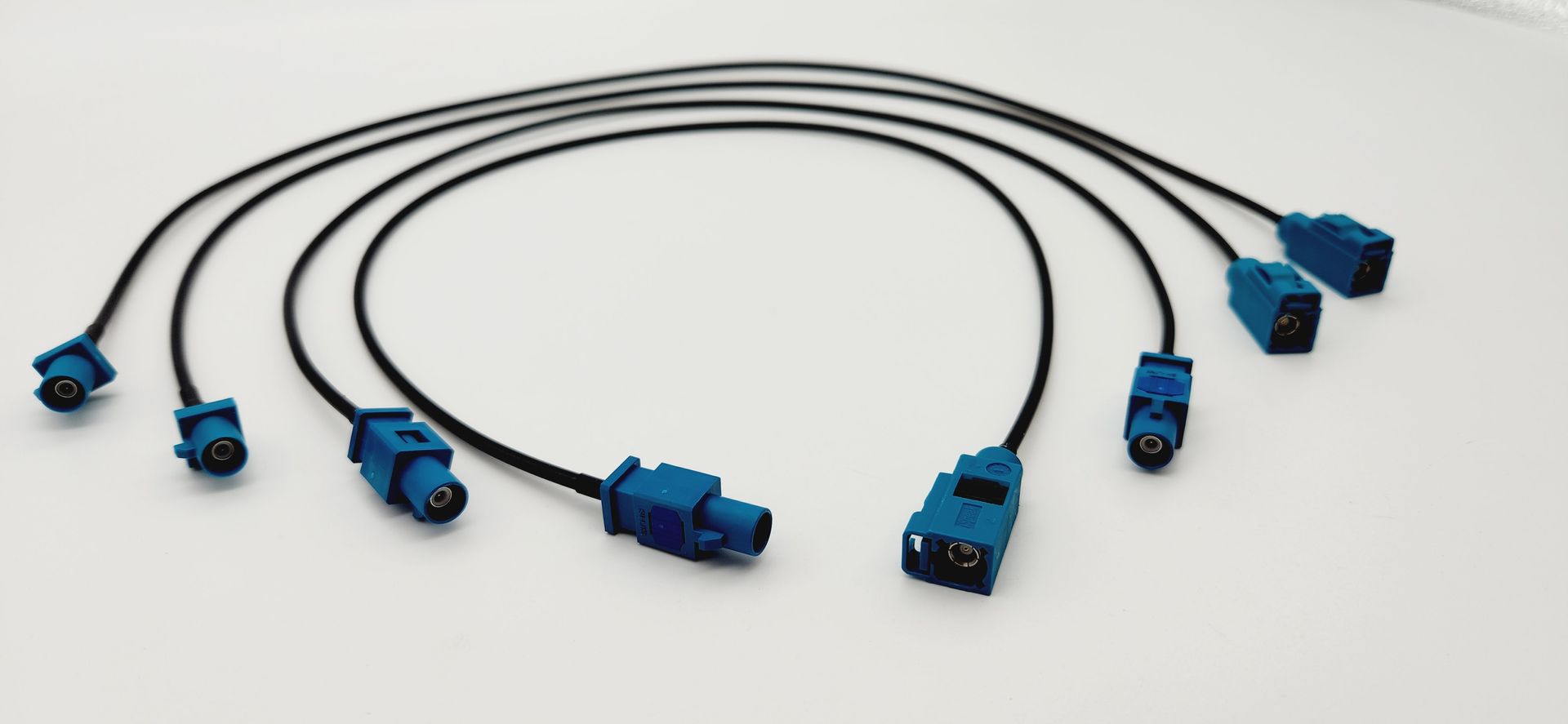

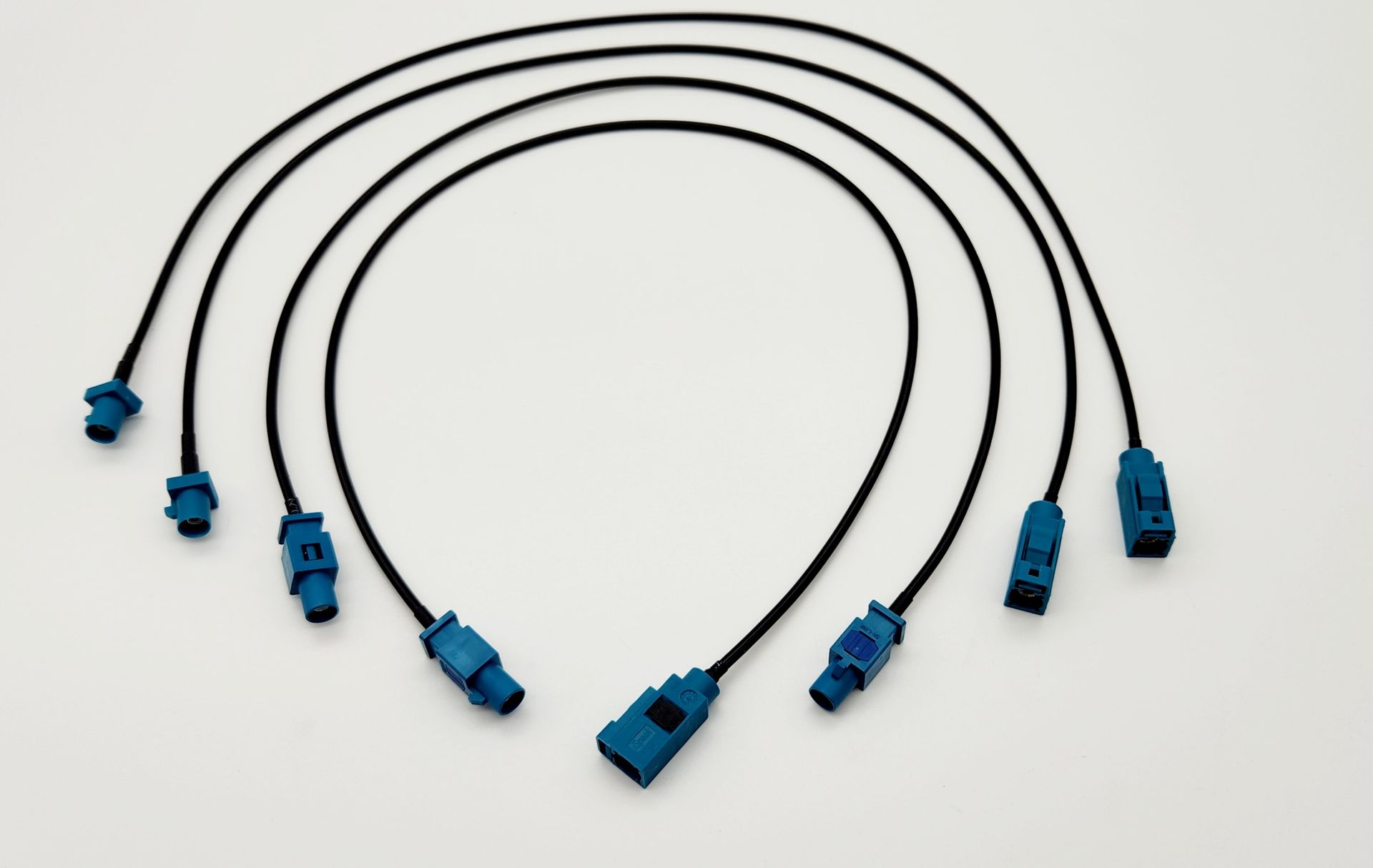

AVRGT FAKRA connector cables (Fachkreis Automobil, a German vehicle-connector standard) include automotive-grade Fakra brand connectors that work up to 6 GHz and 50 ohms.  They are typically used for various wireless-telecom (Telematics) and high-speed data broadcast applications in connected vehicles. Our Fakra-Coax connector cables use USCAR standards and FAKRA and have a plastic casing with a locking function. FAKRA connectors are constructed in jack or plug male / female connectors. Available in straight or right angle versions, dual-connector, multi-connector designs and Splitter designs.

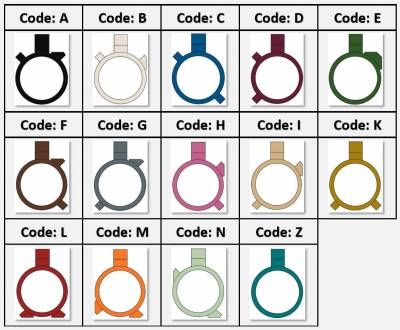

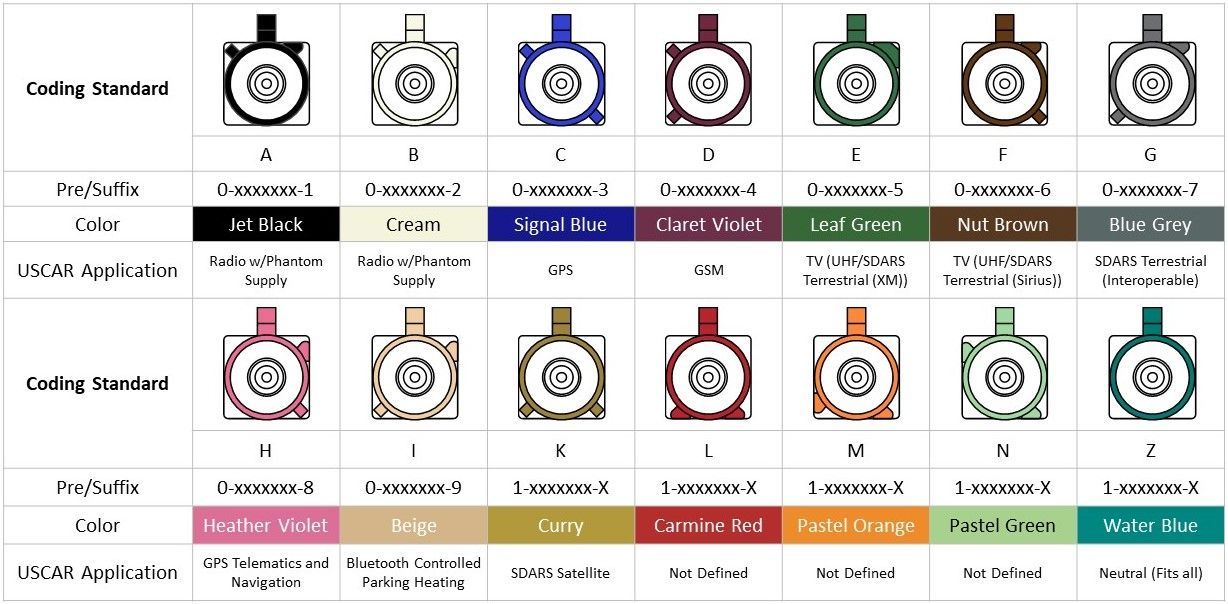

AVRGT Fakra 14 different mechanical layouts (Clocking rotation orientations) which are color coded for easy identification and mis-matching prevention.  The worldwide automotive industry has standardized on connectors based on the FAKRA and USCAR standards.
