The J1962 OBD2 connector

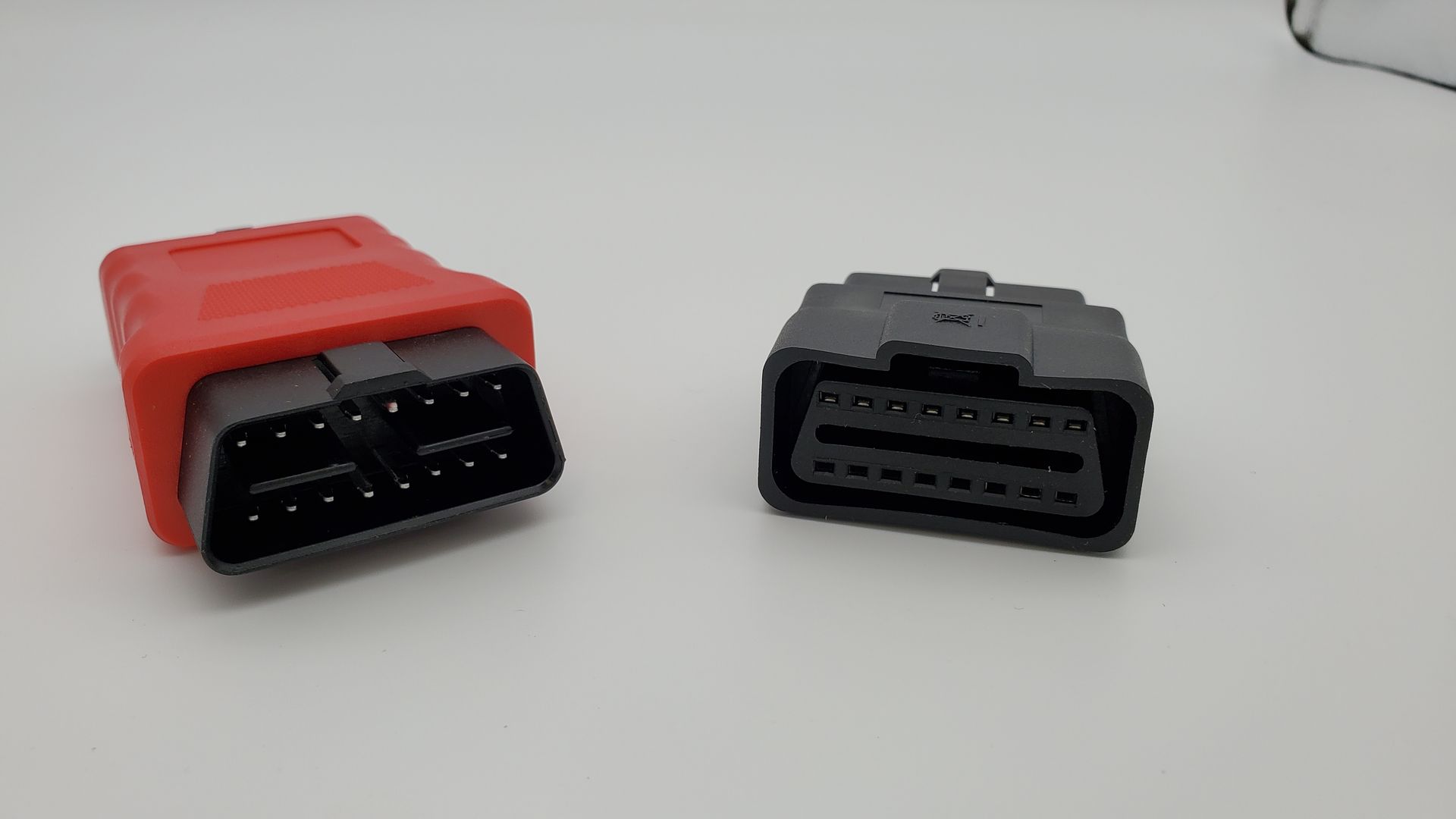

The OBD2 connector series allows you access data from your vehicle's 16pin diagnostics port with ease. The standard SAE J1962 specifies two female OBD2 16-pin connector types (A & B).  (A type: for 12v type applications,  and B-type: which is typically reserved for 24v.)

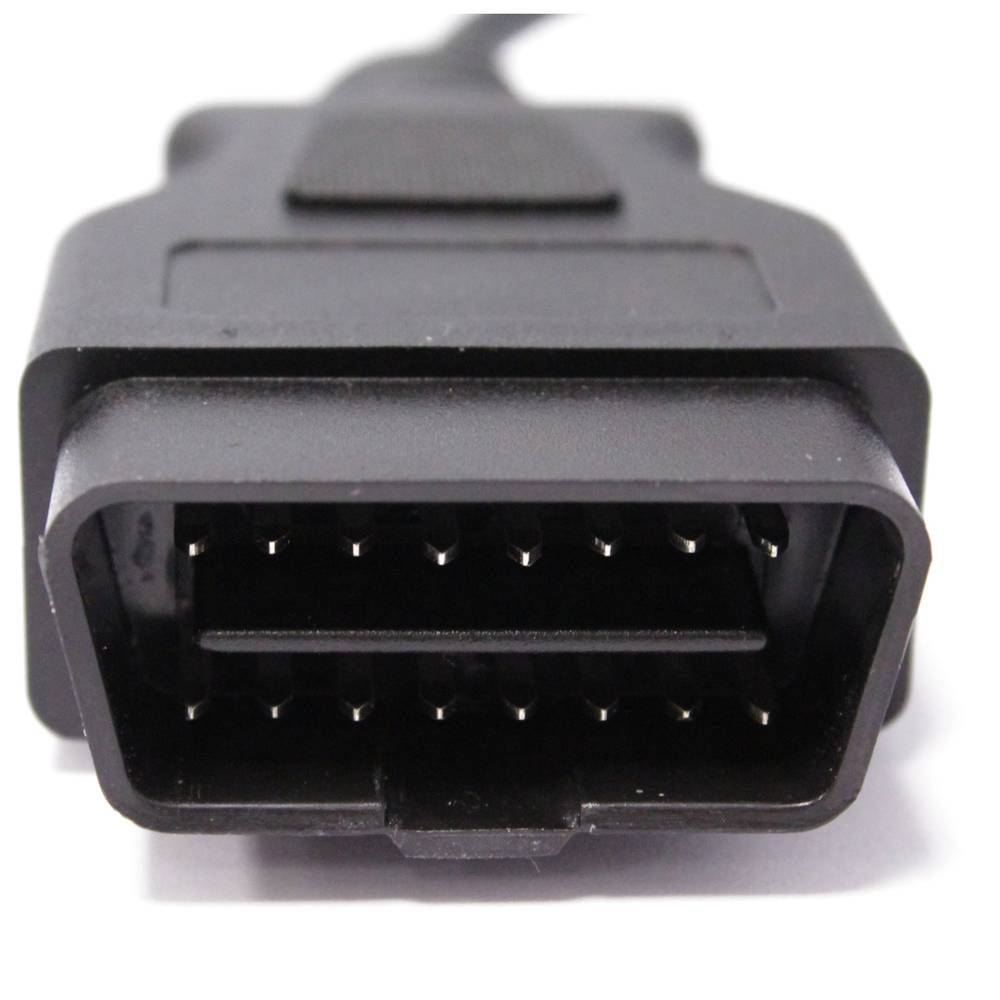

In the illustration, you will see an example of a Type A OBD2 pin connector (also sometimes referred to as the Data Link Connector, DLC).

A few things to note:

• The OBD2 connector is near your steering wheel, but may be hidden behind covers/panels
• Pin 16 supplies battery power (often while the ignition is off)
• The OBD2 pinout depends on the communication protocol
• The most common protocol is CAN (via ISO 15765), meaning that pins 6 (CAN-H) and 14 (CAN-L) will typically be connected
• Note:  Newer Volvo heavy trucks now also use 16pin OBD2 type connectors as well.
